Track.Bloxx Tracker Control Unit | Gantner Instruments

Intelligent PV Tracker Control for Maximum Yield

The field intelligence of the system. Track.Bloxx receives all control commands from the CTC – including location- based tracking, wind protection positions, snow-removal and cleaning modes – and moves the PV array into the required position with precision. It continuously returns operational and status data to the wireless tracker control system for real-time monitoring.

Feature Highlights

Smart Tracker Control
AI-driven optimization, advanced algorithms, maximum energy yield
Flexible Power Supply
1500 VDC string, AC supply, self-powered via pony panel
High Compatibility Motors
Supports 24/48 VDC motors, up to 500 W output power
Customizable System
Software-defined functionality, customizable hardware, flexible architecture
Advanced Communication
2.4 GHz wireless mesh, RS485 interface, global connectivity options
Robust Outdoor Design
IP65 enclosure, UV resistant housing, wide temperature range
Reliable Safety Functions
Wind, hail, flood safety modes, overcurrent protection, emergency stop
Future-Proof Updates
OTA firmware updates, NIS2 and CRA compliant cybersecurity

How Track.bloxx works

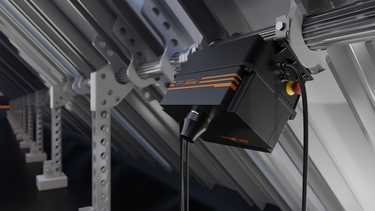

The Track.bloxx series acts as the central control unit for single-axis PV trackers, precisely positioning solar modules based on intelligent tracking algorithms. Using integrated sensors such as inclination and motor current measurement, the system continuously evaluates operating conditions and adjusts tracker positions to maximize solar yield.

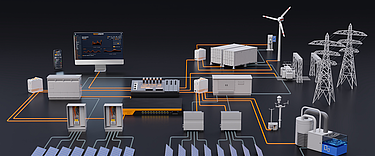

The controller can be powered flexibly via DC string voltage, AC supply or a self-powered solution, making it suitable for a wide range of plant designs. Communication is handled via wireless mesh networks or industrial interfaces, enabling reliable coordination across large solar fields.

With its software-defined functionality, operators can implement custom tracking algorithms and update firmware remotely. This ensures long-term adaptability, improved performance and compliance with evolving regulatory and cybersecurity requirements.

Take a look

Additional Features

Tracking Performance
±180° tracking range, precise positioning, optimized solar alignment
Integrated Sensors
Inclination sensor (0.5° precision), motor current monitoring, optional external sensor input
Wireless Communication
2.4 GHz mesh network, bi-directional, multi-hop, self-healing communication
Configuration & Access
Bluetooth Low Energy (BLE), local configuration, secure access
Power & Battery Options
Optional LiFePO4 battery (7.2 Ah), backup operation, integrated battery heating
Safety Mechanisms

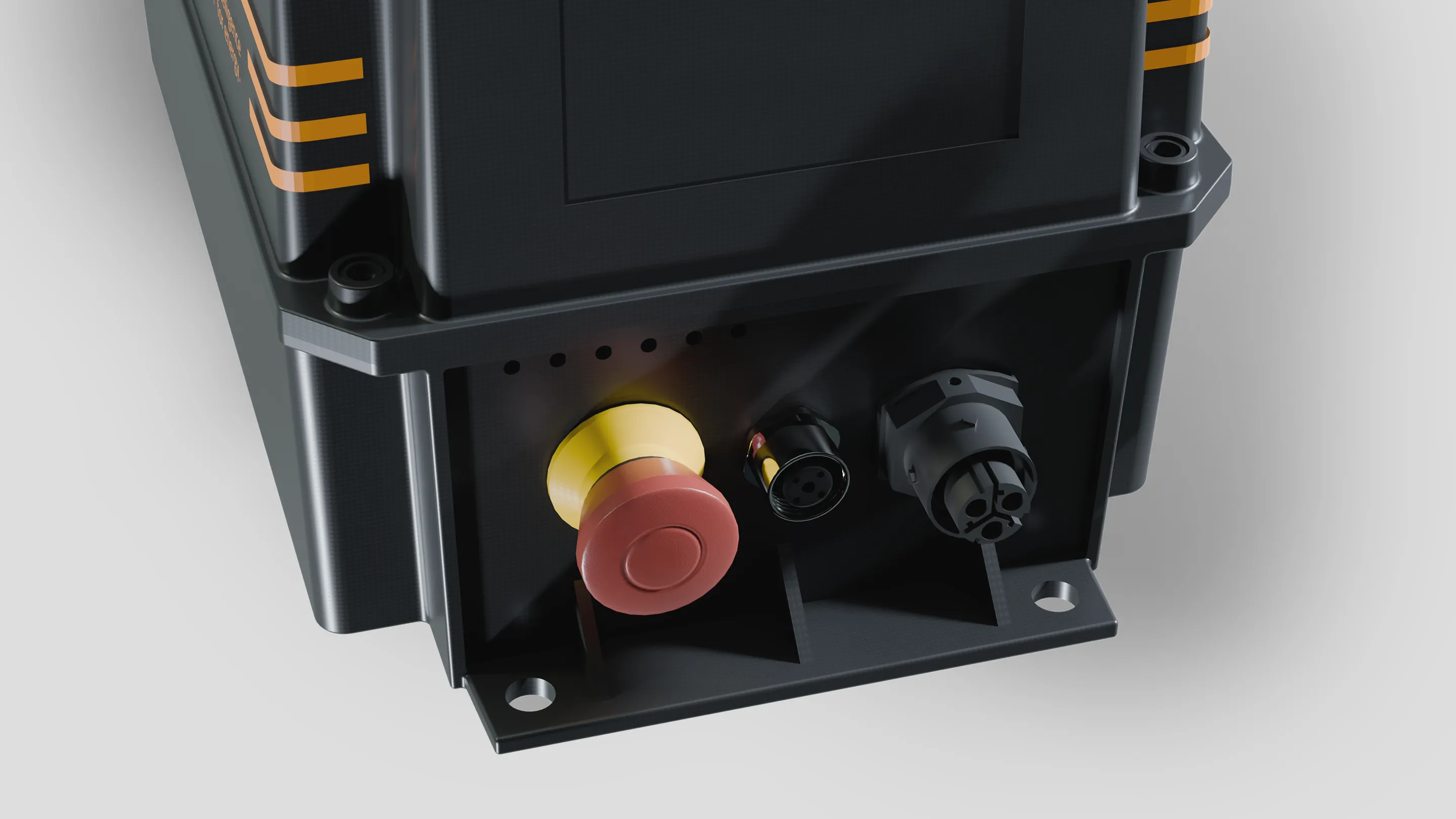

Automatic safety positions, communication timeout mode, emergency stop option
Industrial Connectivity
Motor connectors, optional MC4 connectors, optional RS485 interface
Mechanical & Environmental
Outdoor-ready enclosure, IP65 protection, 30 °C to +60 °C without battery | -20 °C to +60 °C with battery, up to 5000 m altitude
Status & Diagnostics
8 status LEDs, LED signal ring, clear visual system feedback
