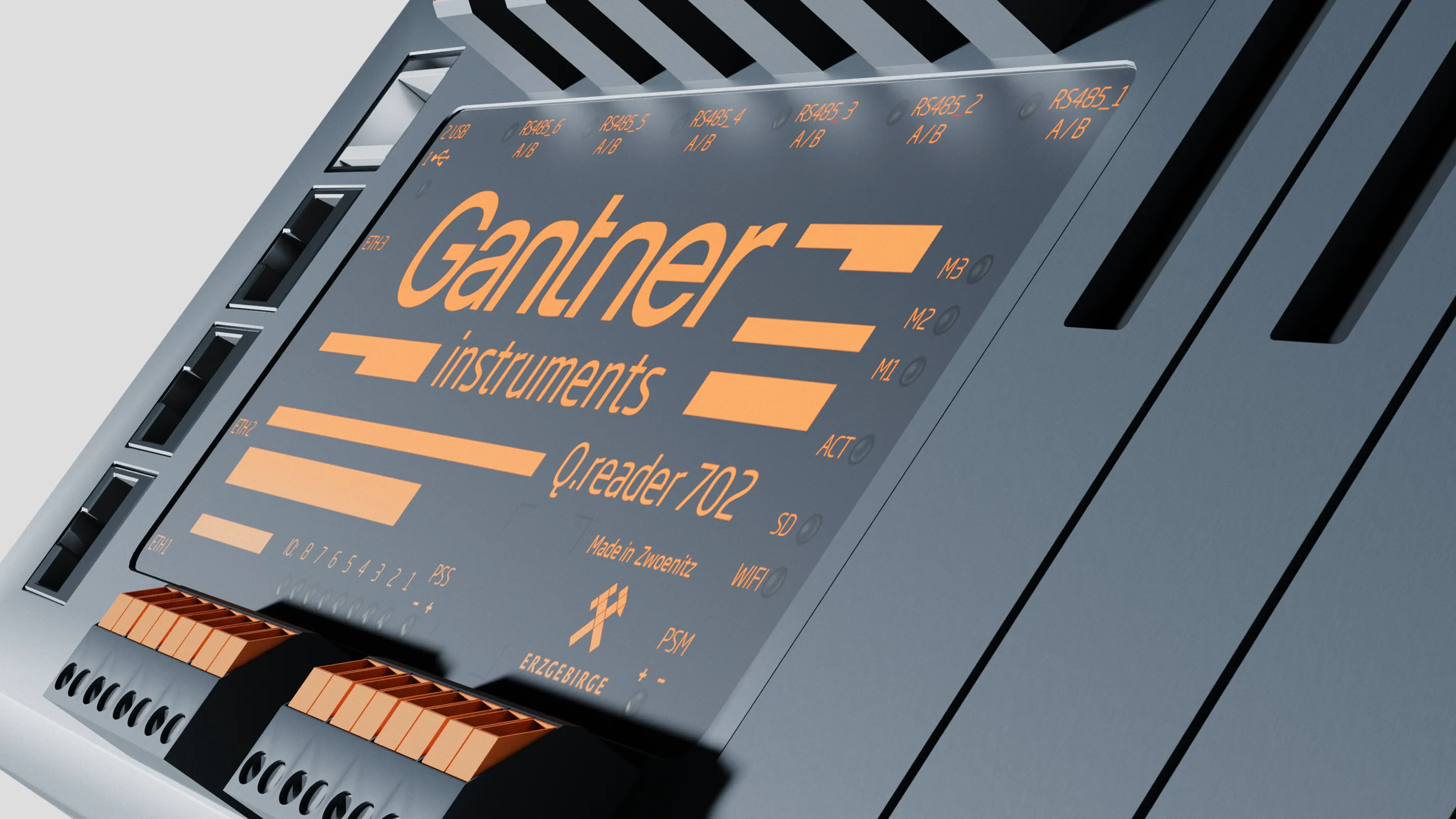

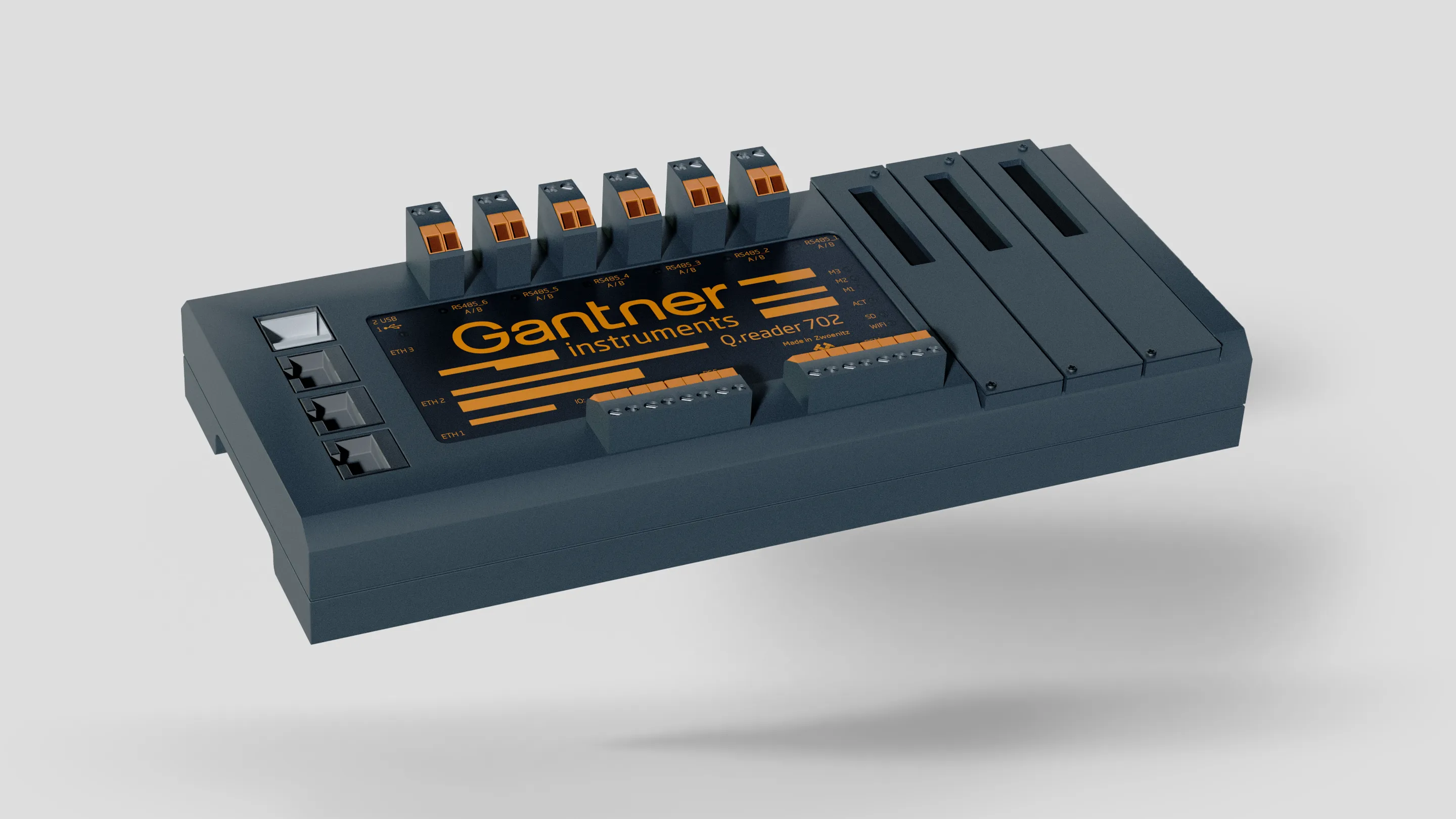

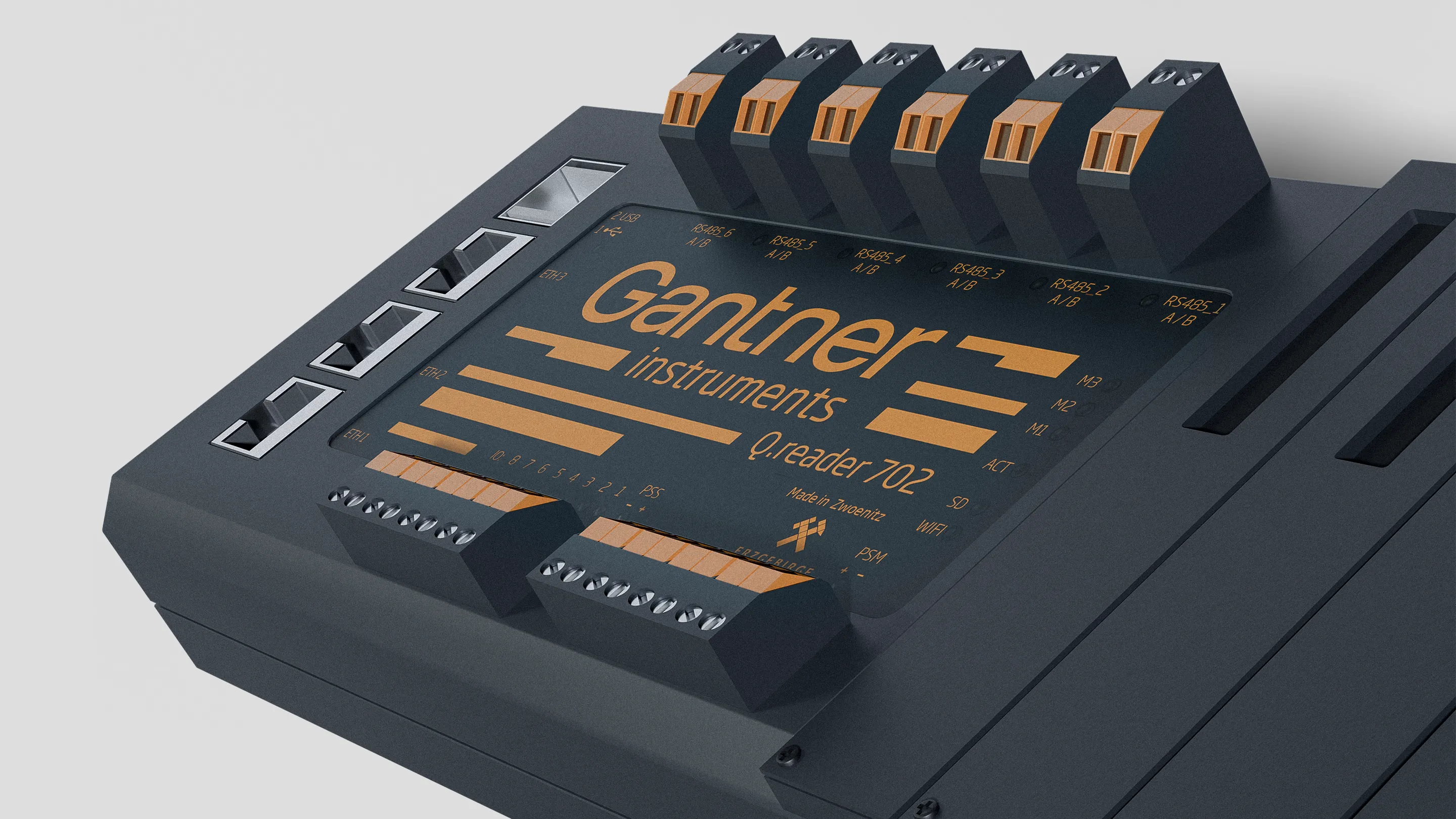

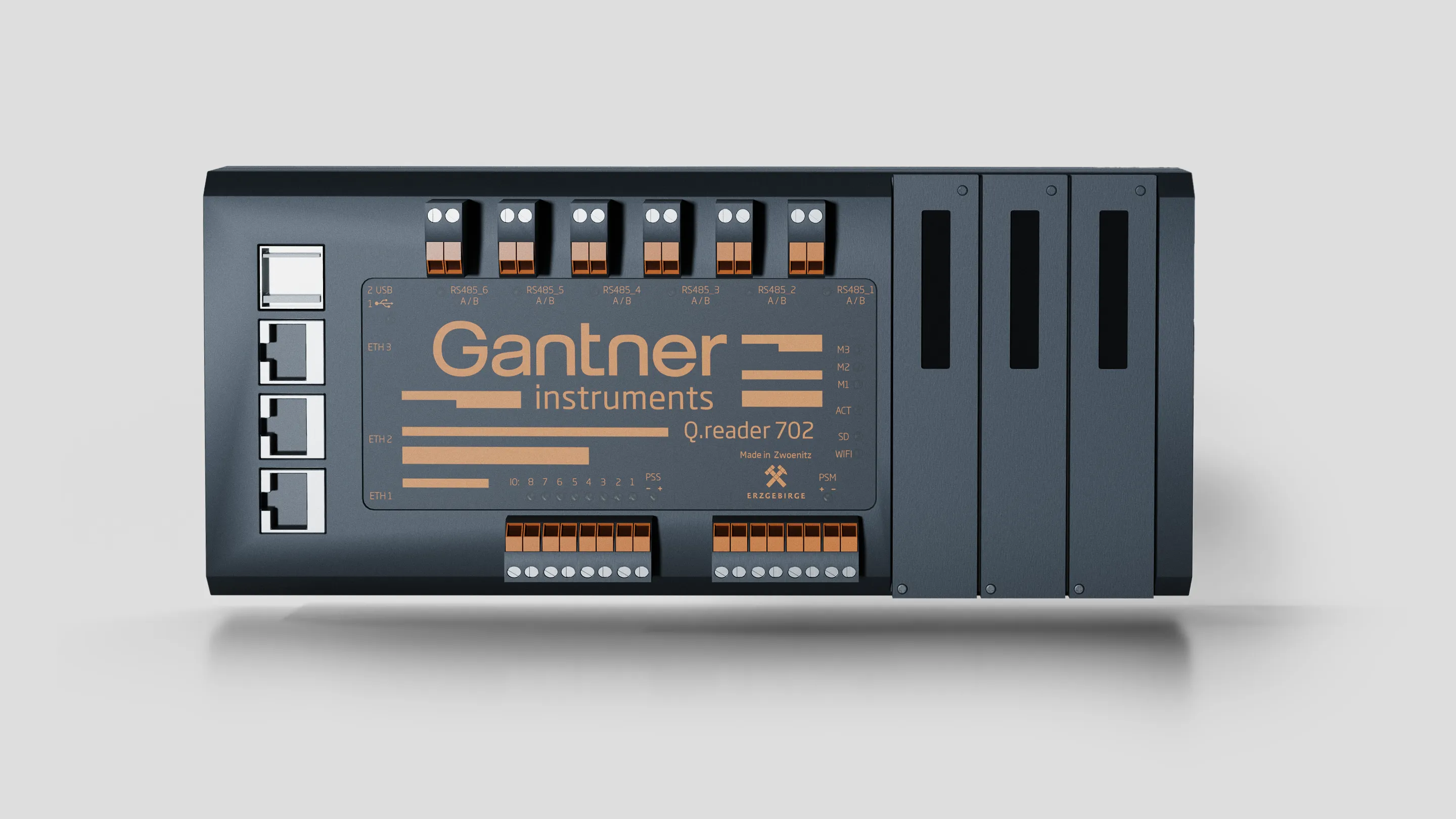

Gantner.Qreader PPC, Data Logger & EMS

More intelligence. More control. More security.

The Gantner.Qreader is Gantner‘s certified power plant controller (PPC), intelligent data logger and energy management system – engineered for utility-scale PV power plants and hybrid applications. Combining reliable data acquisition with advanced grid control functions, the Gantner.Qreader is the operational backbone of every Gantner installation.

Feature Highlights

All-in-One Solution
Power Plant Controller (PPC), data logging & EMS, monitoring, communication, scalable & modular system integration
Grid Compliance Ready
Certified PPC: VDE-AR-N 4110, 4120, 4130 (medium to extra high voltage),NTS, CEI 0-16 and other international certifications
High-Speed Data Acquisition
Up to 10 Hz sampling rate, high-resolution measurement, real-time processing
Flexible Communication
Supports FTP/sFTP server and client, API, MQTT, Modbus-RTU, Modbus TCP, plus a wide range of inverter and sensor protocols
Simulation Software
PSS/E, PSCAD and PowerFactory simulation models
Advanced Control Functions
Active/reactive power control, voltage regulation, frequency control, BESS integration
Secure Data Handling
Industrial cybersecurity standards, encrypted peer-to-peer communication, wireless option via 5G/WiFi, Linux OS
Hybrid Controller & Direct Measurement
Direct CT/VT connection, switchgear monitoring and control, multiple grid connection points
Cybersecurity & OS
Engineered to meet the latest industrial security standards, including IEC 62443 (OT/industrial security) and NIS2 and to support KRITIS requirements, backed by Gantner's ISO 27001 certified processes.

How Gantner.Qreader works

The Gantner.Qreader collects data from various sources within a power plant, including inverters, weather stations, grid measurement devices and additional sensors. It processes this data with high temporal resolution and stores it locally or transmits it to SCADA or cloud systems via standardized communication protocols.

At the same time, the integrated Power Plant Controller (PPC) uses this data to actively control the plant according to grid requirements. Functions such as active power limitation, voltage regulation or reactive power control are executed in real time, ensuring compliance with grid codes and stable plant operation.

Thanks to its modular design, the system can be extended at any time with additional I/O modules. This allows operators to adapt the solution to growing plant sizes or new requirements without replacing existing infrastructure.

Take a look

Additional Features

Data Logging & Storage
10 Hz to 24 h logging interval, individual per channel, 8 GB industrial flash, local arithmetic functions
Modular Expansion
Distributed Z.bloxx and Q.series measurement modules, expandable at any time, up to 24-bit resolution
Communication Interfaces

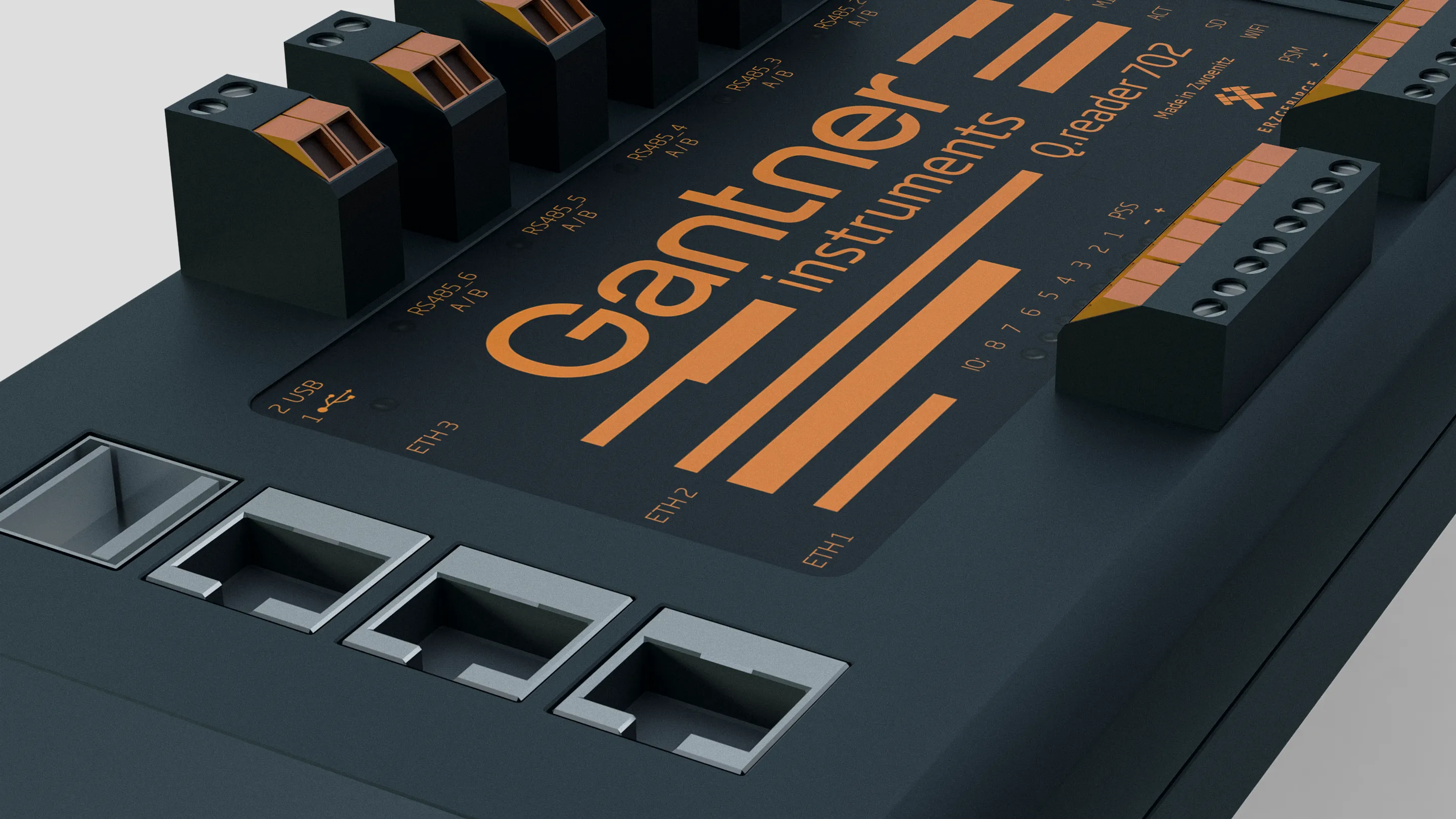

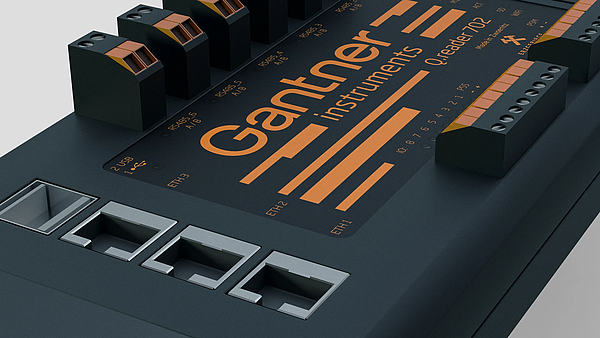

2× Ethernet TCP/IP, 2× RS485 up to 115.2 kbps (galvanically isolated), 2× USB, FTP/sFTP server & client
Wireless Connectivity
Data transfer via cable (Ethernet/LAN) or wireless (5G, WiFi)
Digital Inputs & Outputs
2 digital inputs (expandable to 6), S0 counter up to 1 kHz, configurable digital outputs
SCADA Integration
OPC server connection, Modbus TCP/RTU, CSV data export
Power Supply & Efficiency
12–36 VDC with overvoltage & overload protection, ~5 W consumption, optional redundant supply (Gantner.Qreader 702)
Environmental Robustness
Operating −10 °C to +55 °C, storage −40 °C to +85 °C, relative humidity 5–95 % at 50 °C (non-condensing)
Web Interface
Browser-based configuration (latest Google Chrome recommended)
